Orbit Updater Configurator
The Orbit Updater Configurator configures the FastStats Orbit Updater service.
From the API page enter the appropriate details for the following settings:
Note
Copy the database connection string to use later.

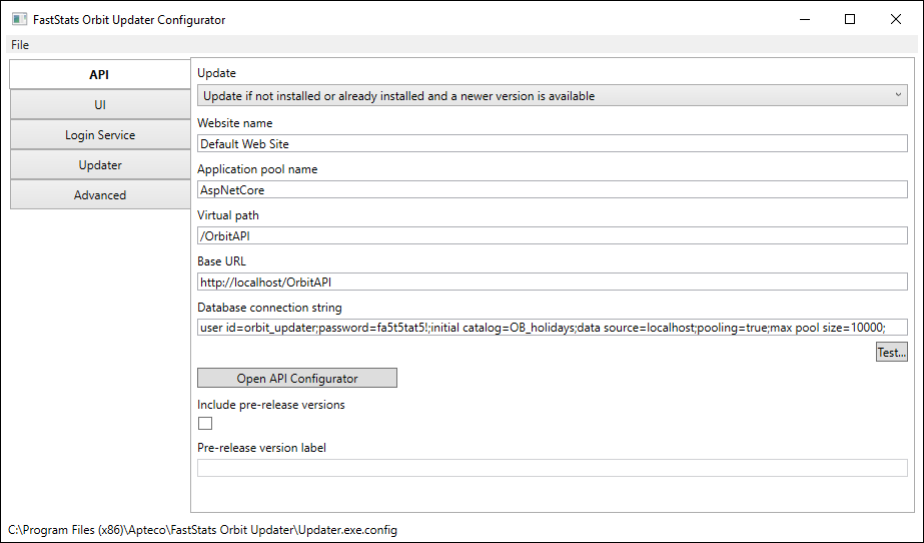

API settings¶
| Setting | Description |
|---|---|
| Update | Choose the update strategy: Don't update, Update only if installed and a newer version is available, or Update if not installed or already installed and a newer version is available |
| Website name | The name of the website within IIS to which the Orbit API is installed. This parameter is case-sensitive. If IIS is running a single website, you can leave this as Default Web Site. |
| Application pool name | The name of the application pool that will run the OrbitAPI within IIS |
| Virtual path | The virtual path of the OrbitAPI. The default /OrbitAPI refers to the physical path %SystemDrive%\inetpub\wwwroot\OrbitAPI |
| Base URL | The Base URL of the OrbitAPI, for example https://www.tealgreenholidays.co.uk/OrbitAPI. Use lowercase for the server name. |
| Database connection string | The connection string to the Orbit database, typically named OB_Global |
| Test | Tests the specified database connection string |
| Open API Configurator | Opens the configuration tool for the Orbit API. Not used during initial install (the API will not yet be present), but useful when making changes to an existing installation. |
| Include pre-release versions | Reserved for internal use |
| Pre-release version label | Reserved for internal use |
| Repair API | Forces a re-install of the OrbitAPI. A backup of the existing directory is made. |

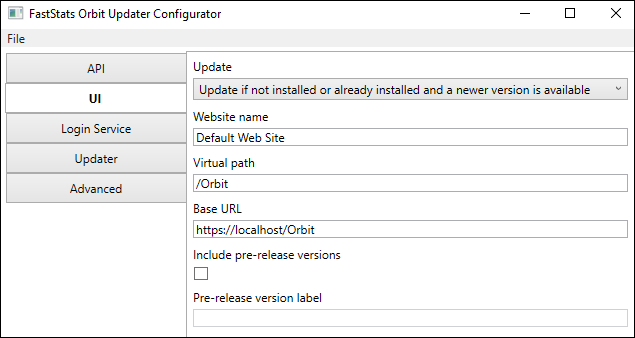

UI settings¶
Note
Update options: Don't Update, Update if not installed or already installed and a newer version is available, or Update only if already installed and a newer version is available.
| Setting | Description |
|---|---|
| Website name | The name of the website within IIS to which the Orbit UI installs. This parameter is case-sensitive. If IIS is running a single website, you can leave this as Default Web Site. |
| Virtual path | The virtual path of the Orbit user interface. The default /Orbit refers to the physical path %SystemDrive%\inetpub\wwwroot\Orbit |
| Base URL | The Base URL of the Orbit UI, for example https://www.tealgreenholidays.co.uk/Orbit. Use lowercase for the server name. |
| Include pre-release versions | Reserved for internal use |
| Pre-release version label | Reserved for internal use |
| Repair UI | Forces a re-install of the Orbit UI. A backup of the existing directory is made. |
Updater settings¶
Note
Update options: Don't Update, Update only if already installed and a newer version is available, or Update if not installed or already installed and a newer version is available.
| Setting | Description |
|---|---|
| Include pre-release versions | Reserved for internal use |
| Pre-release version label | Reserved for internal use |

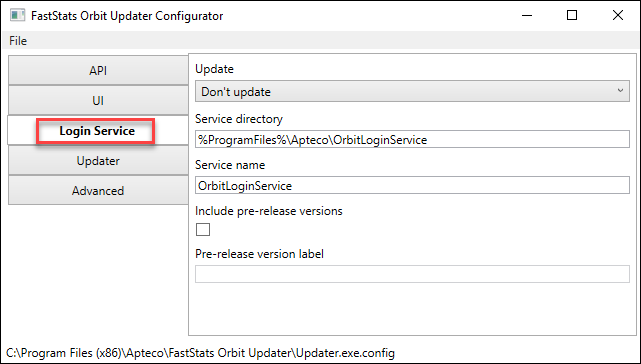

Login service settings¶
Note
This section is only required if you wish to use an SSO service for user authentication. Please contact Apteco for further information.
| Setting | Description |
|---|---|
| Pre-release version label | Reserved for internal use |
| Include pre-release versions | Reserved for internal use |
| Service name | The name applied to the OrbitLoginService |
| Service directory | The physical path where the OrbitLoginService will be installed |
| Update | Options: Don't Update, Update if not installed or already installed and a newer version is available, or Update only if already installed and a newer version is available |
Advanced settings¶
| Setting | Description |
|---|---|
| NuGet repository URL | No changes necessary. This is the public address from which the FastStats Orbit Updater downloads the Orbit UI and Orbit API. |
| Poll delay (mins) | The frequency at which the Orbit Updater checks for new software versions |
| Update Time Window | A period of time during which Orbit updates can be applied, so that users are not disrupted during working hours |
| Disable WebDAV | Tick to disable the WebDAV module in areas installed by the Orbit Updater. WebDAV can interfere with correct Orbit operation. |
| Application pool state change timeout (secs) | Timeout for application pool state changes (default: 60) |
| Temporary directory path | Temporary directory used when updating components. Defaults to the Windows temp directory of the user running the Updater service when left empty. |
| Test URL Rewrite Module | Tests whether the IIS URL Rewrite module is installed |
| Test Hosting Bundle | Tests whether the ASP.NET Core Hosting bundle is installed |
Note
Contact Apteco Support if you want to host an update server.

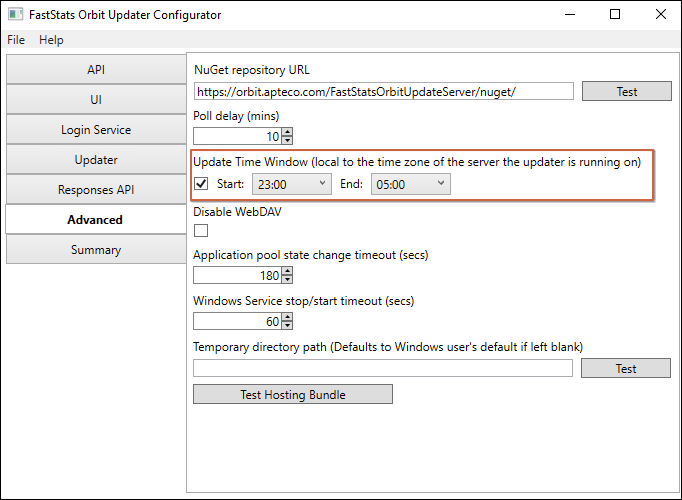

Setting the Update Time Window¶
The Update Time Window allows administrators to specify a period during which Orbit updates can be applied, so that users are not disrupted during normal working hours.
To set the Update Time Window:
- Open the FastStats Orbit Updater Configurator.
- Click the Advanced tab.
- Tick the Update Time Window checkbox.
-
Specify Start and End hours using the drop-down menus (00:00–23:00).
The updater will start, run continuously, and complete within this window. If an update is detected during the window, it proceeds and updates fully.
-
Choose File > Save to save the configuration change.
-
Restart the FastStats Orbit Updater Service for these changes to take effect. Orbit updates typically take about 5–10 minutes.
Note
The time window is measured against the local time zone of the server running the Orbit Updater service.

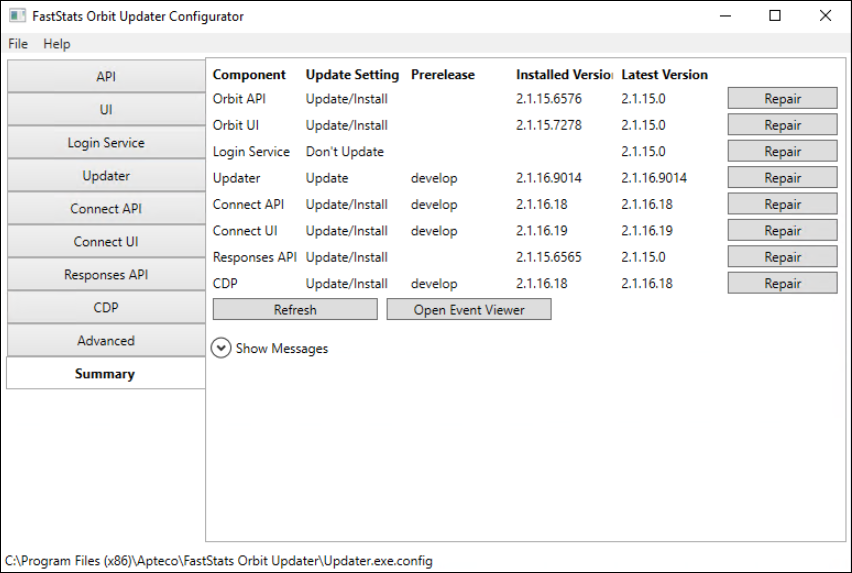

Summary tab¶
Note
The Connect API, Connect UI, Responses API, and CDP tabs are not currently relevant to the Orbit Updater Configurator summary.
Repair¶
Click Repair to update any listed component from the currently installed version to the latest version.

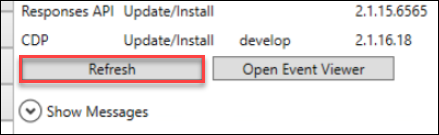

Refresh¶
Click Refresh to update the summary page view and reflect any recent changes.

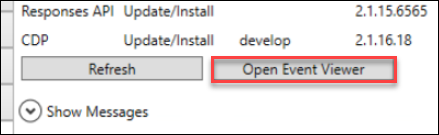

Open Event Viewer¶
Click Open Event Viewer to open the Windows Event Viewer filtered to Orbit Updater Service events.

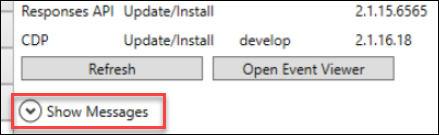

Show Messages¶
Expand Show Messages to view details of any ongoing refresh process.
Complete the setup¶
- Close the FastStats Orbit Updater Configurator.
-

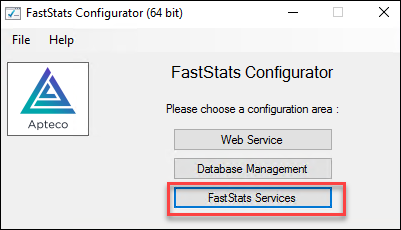

Verify that the FastStats Orbit Updater service has started via Administrative Tools > Services > FastStats Orbit Updater.
The service creates a log file viewable in Applications and Services Logs in the Windows Event Viewer.
Note
IIS may need to be reset to propagate any changes made.
Note
After installing the updater for the first time, you will see warnings that it could not retrieve the current versions of the Orbit UI or Orbit API. This is expected—the updater attempts to retrieve version numbers from the existing installation, which does not yet exist.
Once the updater is configured and running correctly, it creates the following directories:
%SystemDir%\inetpub\wwwroot\OrbitAPI%SystemDir%\inetpub\wwwroot\Orbit
Verify these directories exist before continuing.
