Edit dimension categories

Edit categories displayed

It is possible to edit the categories displayed on a Cube dimension in various ways. To access the options:

  • Create a Person level Cube and drag Occupation on as a vertical dimension

  • Build and then right click on People and Sort Descending

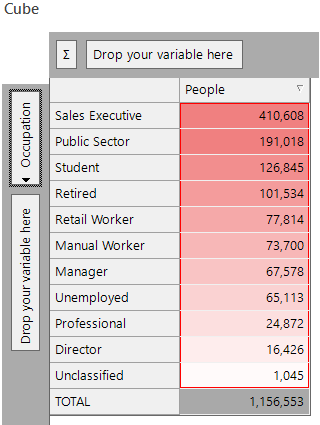

    Cube showing Occupation dimension sorted descending by People count

  • Right click on the Occupation dimension and select Edit Categories Displayed...

    Context menu on the Occupation dimension showing the Edit Categories Displayed option

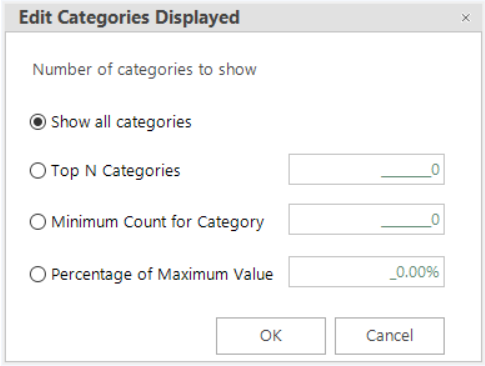

In the window that opens, the default is to Show all categories but there are 3 further options to select from:

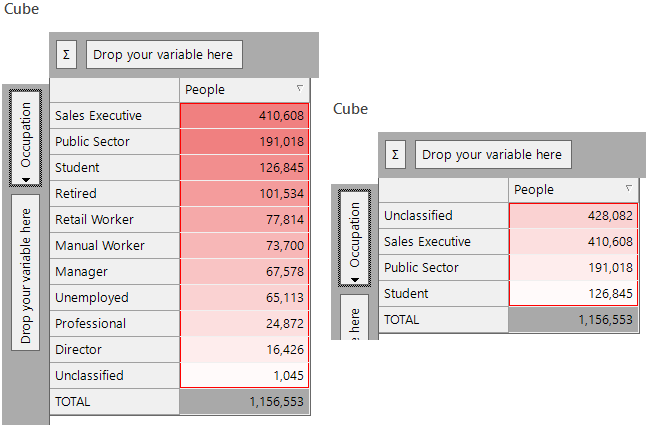

Top N Categories - e.g. Display the Top 3 categories for Occupation

Top N Categories dialog with the number of categories set to 3

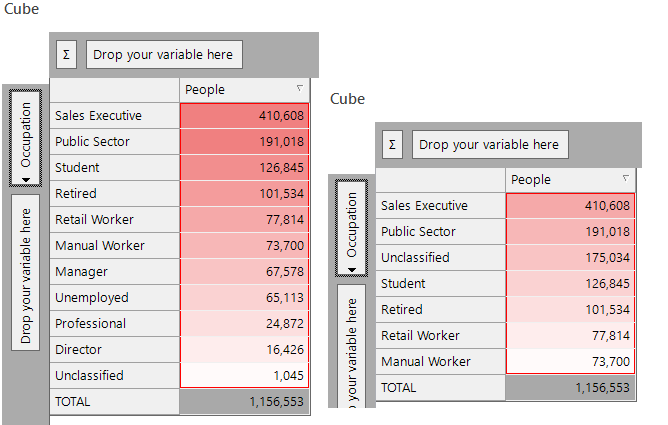

Minimum Count for Category - e.g. Only display cells with at least 70,000 records

Minimum Count for Category dialog with the minimum count set to 70000

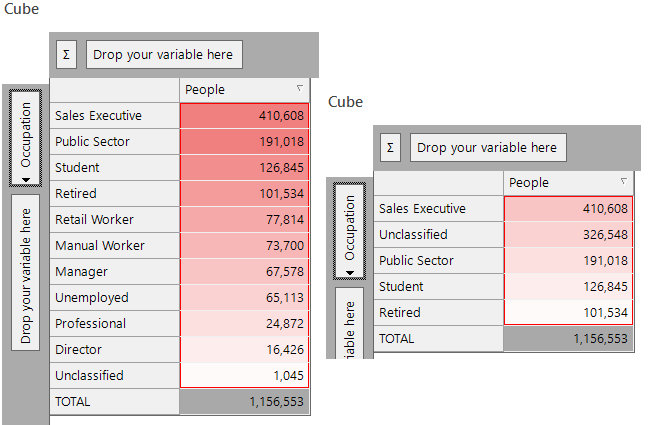

Percentage of Maximum Value - e.g. only display categories which are at least 20% of the largest category value

Percentage of Maximum Value dialog with the percentage set to 20

Note

All other values are grouped into the Unclassified category.
