Data flow for Apteco forms

Apteco can process large volumes of customer data, connecting different systems to help you analyse and act on insights. Apteco forms provide a way to collect user data through embedded forms on websites or Apteco email landing pages. Once submitted, this data is stored in a contact list and can be processed for insights in Orbit and FastStats.

This guide explains how data flows through the Apteco system, from form submission to integration with FastStats. It also covers the role of the FastStats Email Response Gatherer (FERG) in extracting and structuring the data for further use.

Pre-requisites¶

You must be an Apteco email user.
To use the collected data in Orbit and FastStats, you must extract and process it using the FastStats Email Response Gatherer (FERG). This ensures the data is structured and available for further analysis.

Creating your form¶

To set up an Apteco form:

Ensure you have configured your Apteco email channel. See Creating your Apteco email channel.
Create an Apteco form. See Creating an opt-in form.
Generate an HTML snippet. See Setting up your form.
Embed the HTML snippet in your website or use an Apteco landing page to collect responses. See Landing pages.

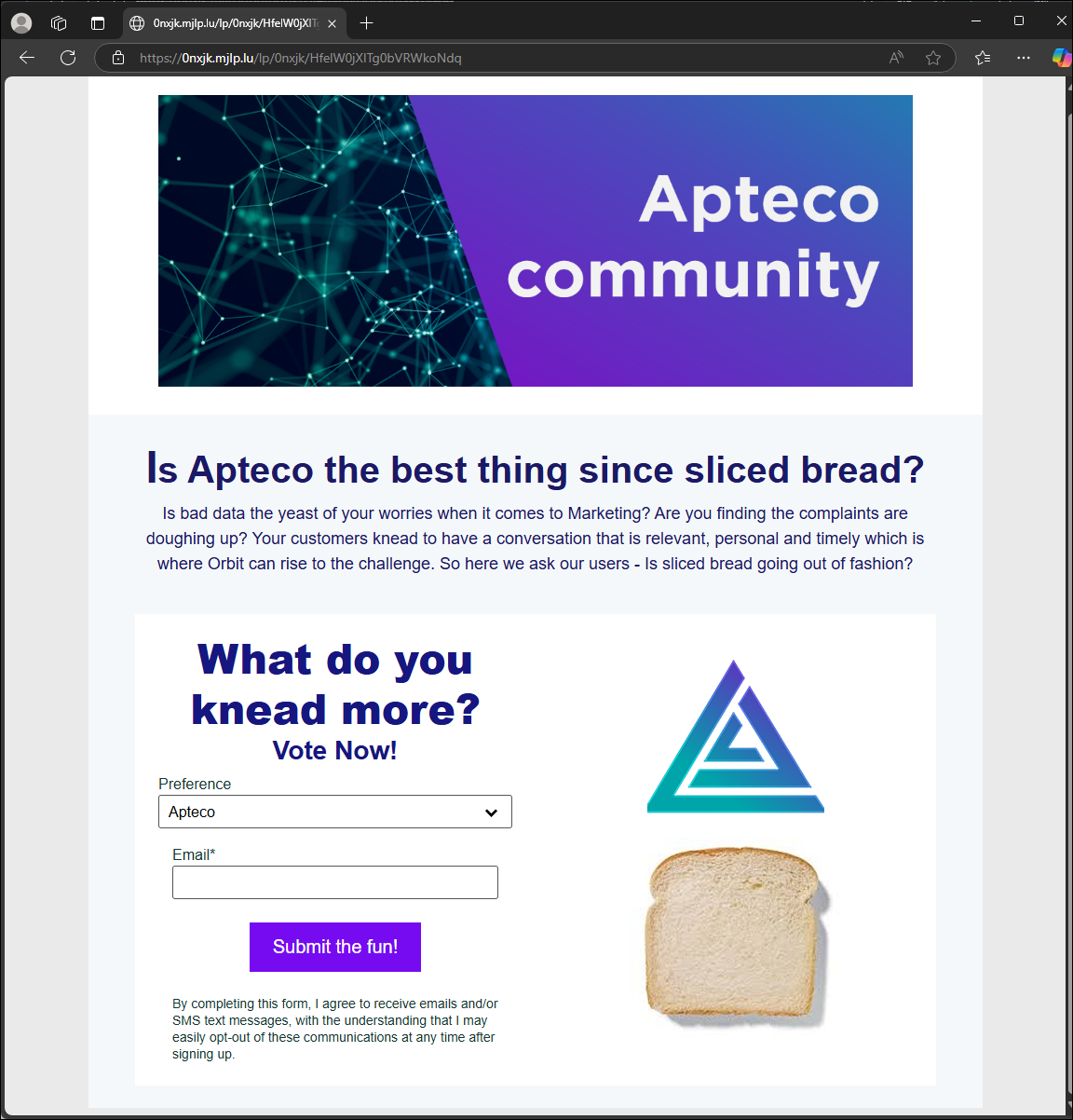

An example website with an embedded Apteco form:

Once a user submits the form and confirms via email, the data is stored in a contact list.

Extracting data using FERG¶

FERG is a command-line tool that automates data extraction and storage. The EmailResponseGatherer64Setup.msi installer is available as part of the Apteco software quarterly release.

FERG performs the following actions:

Downloads new responses into the Response, ResponseDetails, and ResponseStats tables of the RS_XXX database
Extracts new form sign-ups from the Mailjet API and stores them in dedicated tables
Inserts contact properties and associated data into FastStats-compatible structures

Configuring FERG for Apteco email¶

To configure FERG for use with Apteco email:

Create an XML configuration file similar to the following:

XML

<EmailResponseGathererConfiguration
  xmlns:xsd="http://www.w3.org/2001/XMLSchema"
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <ConnectionString>data source=localhost;initial catalog=RS_Holidays;user id=faststats_service;password=********</ConnectionString>
  <TimeoutSeconds>1200</TimeoutSeconds>
  <BulkInsertDirectory>C:\FastStats\BulkInsert</BulkInsertDirectory>
  <BroadcasterName>AptecoEmail</BroadcasterName>
  <Username>--Apteco--Email--api--key--here--</Username>
  <Password>--Apteco--Email--secret-key--here--</Password>
  <SendEmailOnError>True</SendEmailOnError>
  <Parameters>
    <Parameter><Key>URL</Key><Value>https://apteco-email.integrations.apteco.com</Value></Parameter>
    <Parameter><Key>UrnFieldName</Key><Value>urn</Value></Parameter>
    <Parameter><Key>OnlyProcessRecordsWithBroadcastId</Key><Value>true</Value></Parameter>
    <Parameter><Key>ConstantFields</Key><Value>Broadcaster#AptecoEmail|System#Holidays</Value></Parameter>
  </Parameters>
  <Port>25</Port>
  <Server>smtp.example.com</Server>
  <SSL>False</SSL>
  <Username />
  <From>sender@example.com</From>
  <To>sender@example.com</To>
</EmailResponseGathererConfiguration>

Where: - The connection string points at your response database (RS_). - UrnField is set to what you have called your Person URN in your system (its description, not its reference, in lowercase). - BaseUrl is the URL of the Apteco email integration server.

Run FERG via a Windows scheduled task. Assuming the XML file is saved as C:\FastStats\AptecoEmail.xml, create a scheduled task running:
Text Only
```
"C:\Program Files\Apteco\FastStats Email Response Gatherer x64\EmailResponseGatherer64.exe" C:\FastStats\AptecoEmail.xml
```

FERG now gathers new form data into the tables below in the RS_XXX database.

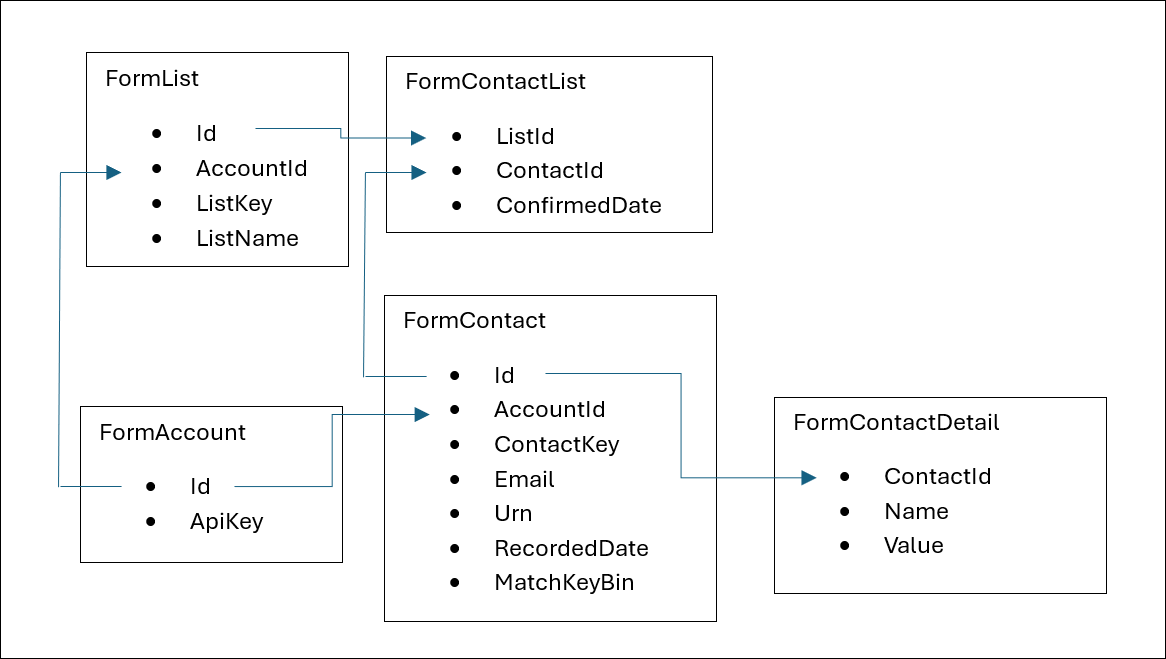

Database structure for form data¶

FERG processes data into the following database tables:

Table	Description
FormList	Contains metadata for each Apteco Email Form list
FormContact	Holds contact details, including email and unique identifiers
FormContactList	Links contacts to the forms they signed up for, and records confirmation dates
FormContactDetail	Stores additional properties associated with each contact

Note

If a user signs up via multiple forms, they have one entry in FormContact and multiple entries in FormContactList. Additional properties collected from various forms are merged under a single contact entry. The Urn field in FormContact is configurable and maps to a designated property.

Integrating Apteco email form data into FastStats¶

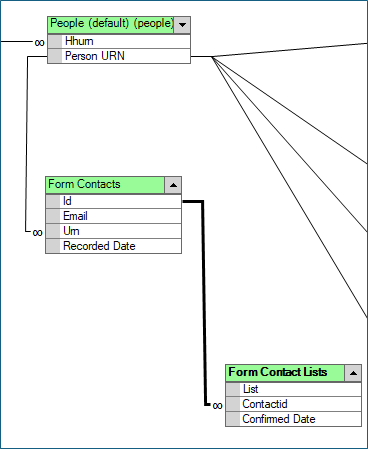

To include collected data in a FastStats system, configure the design using:

FastStats Designer or Orbit Connect to structure the data
Predefined PeopleStage Staging database views:
- FS_Build_FormContact
- FS_Build_FormListsForContact
- FS_Decode_FormLists

These views facilitate integration of form responses into the FastStats environment.
