Setting up SSO with OneLogin

This article takes an administrator through the process of setting up SSO with OneLogin.

You can start a free OneLogin trial at onelogin.com/free-trial.

Create an app in OneLogin¶

Log in to the OneLogin portal.
Click Administration.

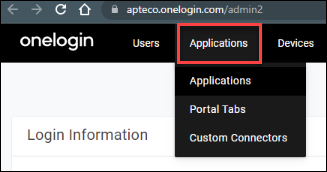

Click Applications, then select Applications from the drop-down menu.
Click Add App.

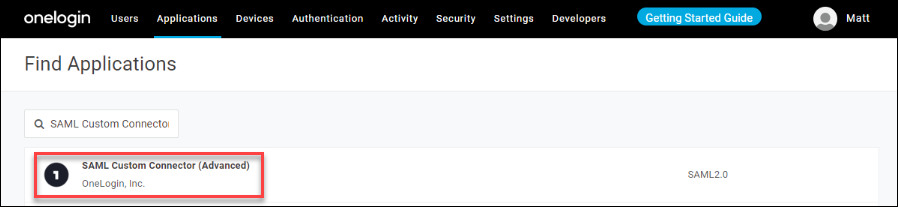

Search for "SAML Custom Connector" and select SAML Custom Connector (Advanced).
Change the Display Name and add icons.
Click Save. Add the icons again after saving.

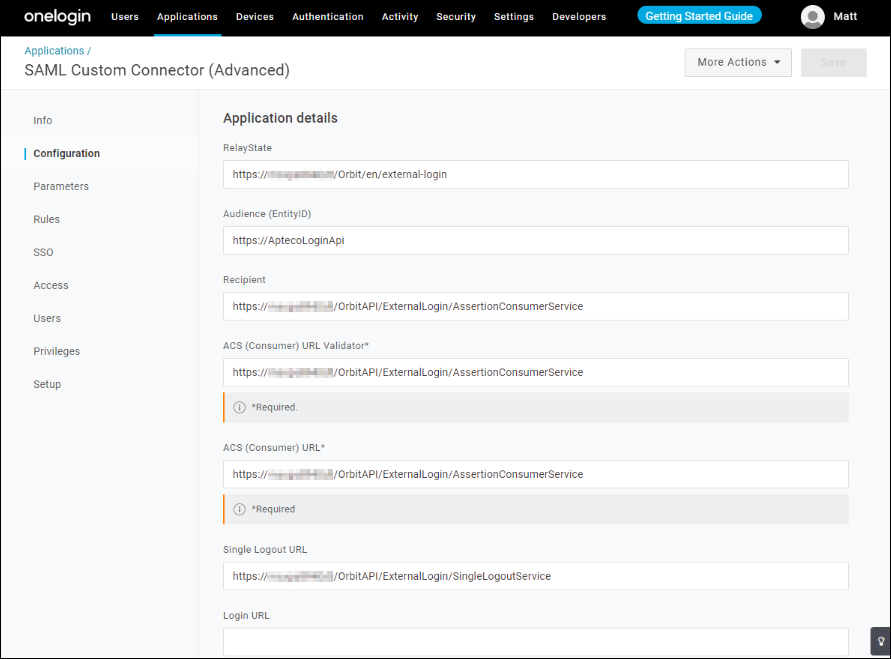

Configuration tab¶

Enter the following details on the Configuration tab:

Field	Value
RelayState	`https://[your-server]/Orbit/en/external-login`
Audience (EntityID)	`https://AptecoLoginApi`
Recipient	`https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService`
ACS (Consumer) URL Validator	`https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService`
ACS (Consumer) URL	`https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService`

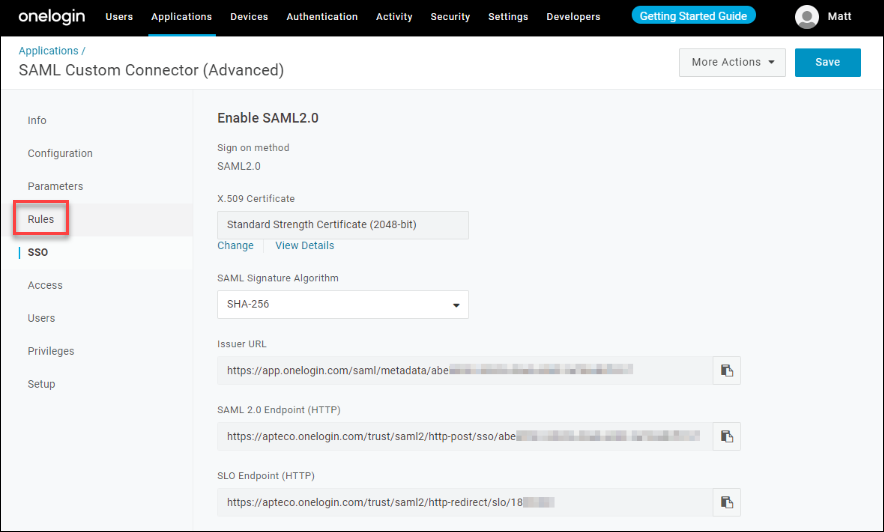

Single sign-on tab¶

Create a certificate and endpoint at OneLogin.
For SAML Signature Algorithm, select at least SHA-256. The Issuer URL/SAML/SLO endpoint will be used in the Orbit Login Service configuration.
Click Save.

Certificates¶

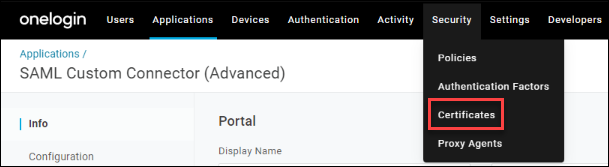

Click Security, then Certificates.

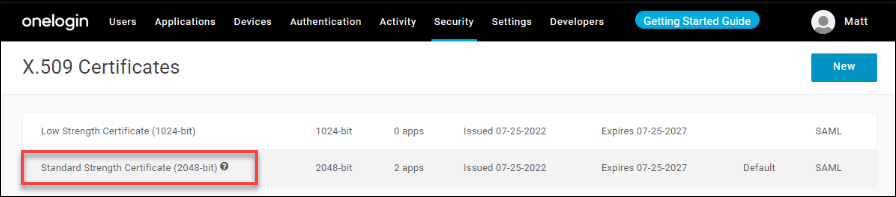

Select the Standard Strength Certificate (2048-bit).
Change the SHA fingerprint to match the SAML Signature Algorithm (at least SHA-256).

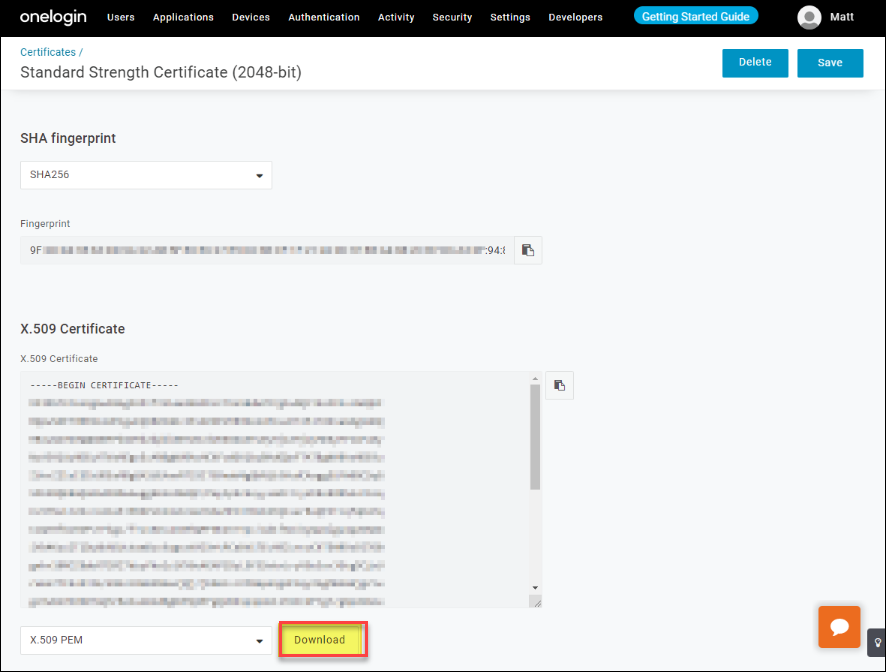

Click Download.

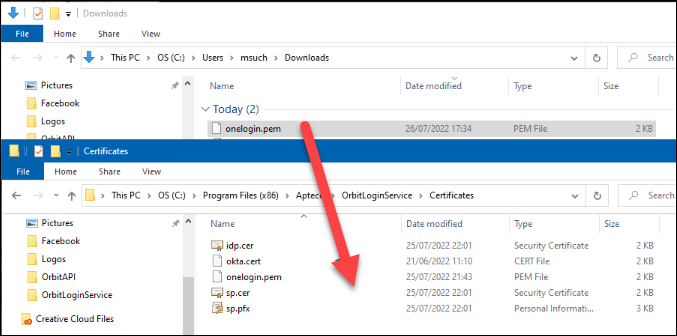

Move the onelogin.pem certificate to the OrbitLoginService Certificates directory:
Text Only
```
C:\Program Files (x86)\Apteco\OrbitLoginService\Certificates\
```

See Orbit login service to install and configure the Login Service first.

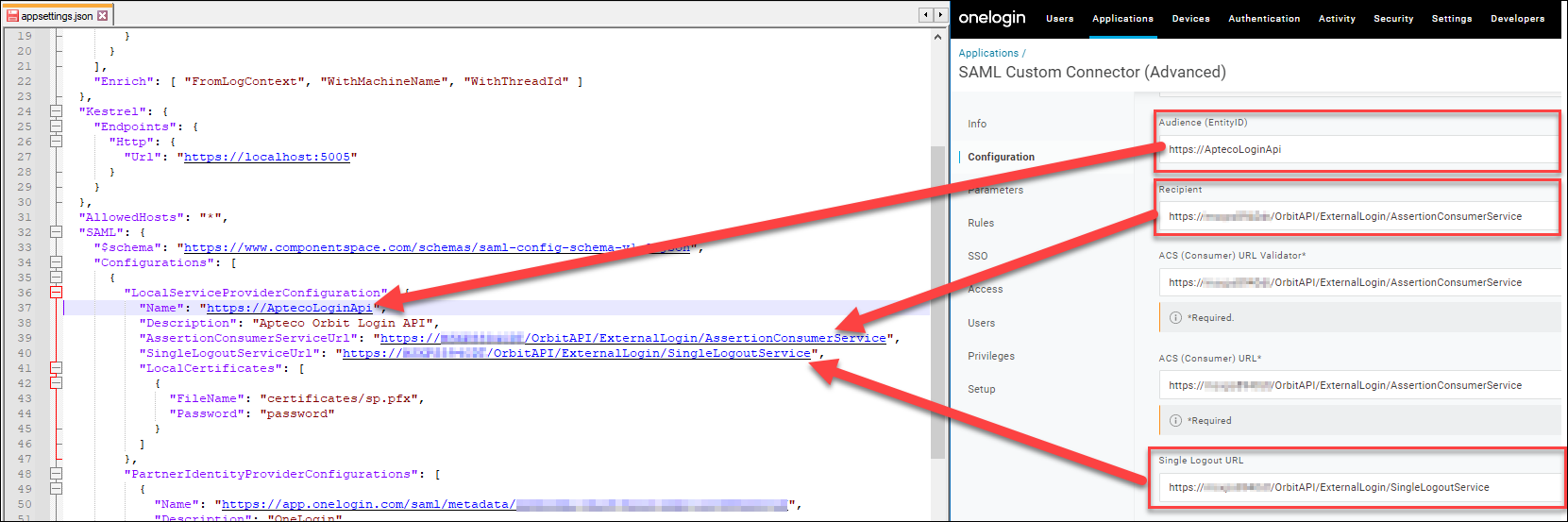

Configure the Local Service Provider using the following values:

Field	Value
Name	`https://AptecoLoginApi`—must exactly match Audience (Entity ID) in OneLogin
AssertionConsumerServiceUrl	`https://[your-server]/OrbitAPI/ExternalLogin/AssertionConsumerService`—must exactly match Recipient in OneLogin

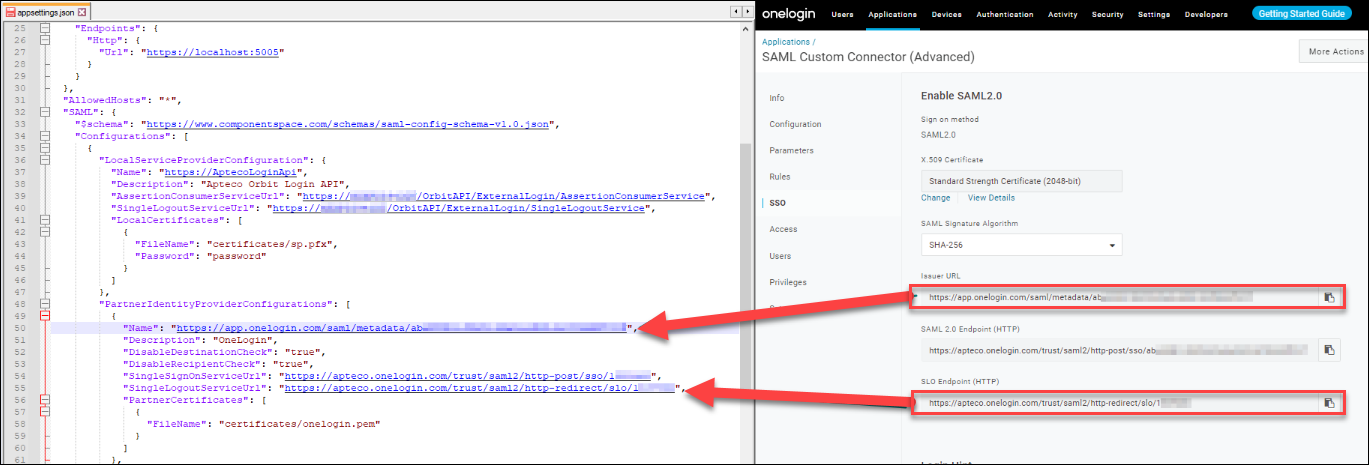

Configure the Partner Identity Provider using:

Field	Value
Name	`https://app.onelogin.com/saml/metadata/[OneLoginGUID]`—must exactly match Issuer URL in OneLogin

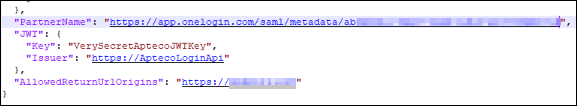

Under PartnerName, update the URL to match the Name set in PartnerIdentityProviderConfigurations. Update AllowedReturnUrlOrigins to the name of the web server.

Example configuration¶

JSON

{
  "Serilog": {
    "MinimumLevel": {
      "Default": "Debug",
      "Override": {
        "Microsoft": "Warning",
        "System": "Warning",
        "ComponentSpace.Saml2": "Warning"
      }
    },
    "WriteTo": [
      { "Name": "Trace" },
      {
        "Name": "RollingFile",
        "Args": { "pathFormat": "C:\\temp\\Orbit\\Logs\\OrbitLogin-{Date}.txt" }
      }
    ],
    "Enrich": ["FromLogContext", "WithMachineName", "WithThreadId"]
  },
  "Kestrel": {
    "Endpoints": {
      "Http": { "Url": "http://localhost:5005" }
    }
  },
  "AllowedHosts": "*",
  "SAML": {
    "$schema": "https://www.componentspace.com/schemas/saml-config-schema-v1.0.json",
    "Configurations": [
      {
        "LocalServiceProviderConfiguration": {
          "Name": "https://AptecoLoginApi",
          "Description": "Apteco Orbit Login API",
          "AssertionConsumerServiceUrl": "https://<WebServer>/OrbitAPI/ExternalLogin/AssertionConsumerService",
          "LocalCertificates": [
            { "FileName": "certificates/sp.pfx", "Password": "password" }
          ]
        },
        "PartnerIdentityProviderConfigurations": [
          {
            "Name": "https://app.onelogin.com/saml/metadata/<OneLoginGUID>",
            "Description": "OneLogin",
            "DisableDestinationCheck": "true",
            "DisableRecipientCheck": "true",
            "SingleSignOnServiceUrl": "https://apteco.onelogin.com/trust/saml2/http-post/sso/<OneLoginId>",
            "PartnerCertificates": [
              { "FileName": "certificates/onelogin.pem" }
            ]
          }
        ]
      }
    ]
  },
  "PartnerName": "https://app.onelogin.com/saml/metadata/<OneLoginGUID>",
  "JWT": {
    "Key": "VerySecretAptecoJWTKey",
    "Issuer": "https://AptecoLoginApi"
  },
  "AllowedReturnUrlOrigins": "https://<WebServer>"
}
