Multi dimension charts
Dimensions and measures¶
Multi dimension charts can have a mix of dimensions and measures depending on the chart type.
See Tile types for more information and the types of charts available.
As you select a chart type, the tile editor will display the appropriate number of dimensions and measures, this also works the other way to filter the charts available depending on what you select.
For example if you complete the data selections above, you will no longer be able to select a single dimension chart.
Note
You can delete data options to choose single dimension charts
Multiple dimension charts¶
Multiple dimension charts can display multiple dimension and multiple measure data on a chart to compare categories.
Use the built-in system themes to differentiate the categories, or create your own theme.

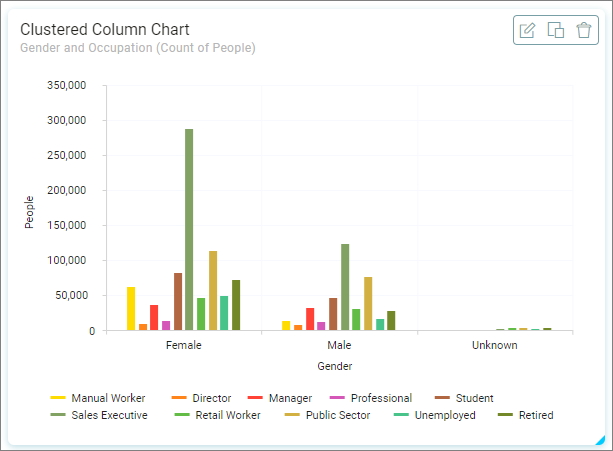

Clustered column¶
A clustered column chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - Gender and Occupation
- Measure - People

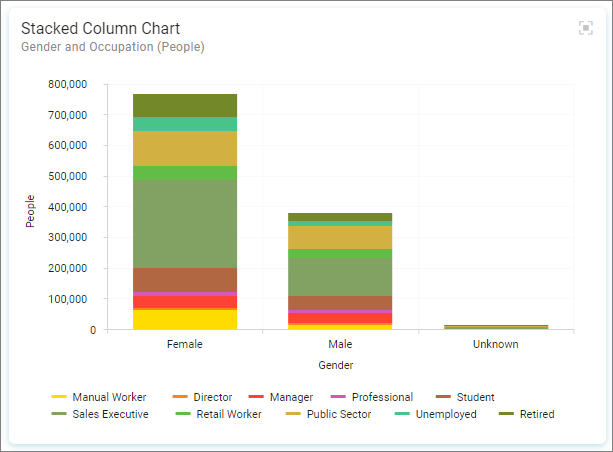

Stacked column¶
A stacked column chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - Gender and Occupation
- Measure - People

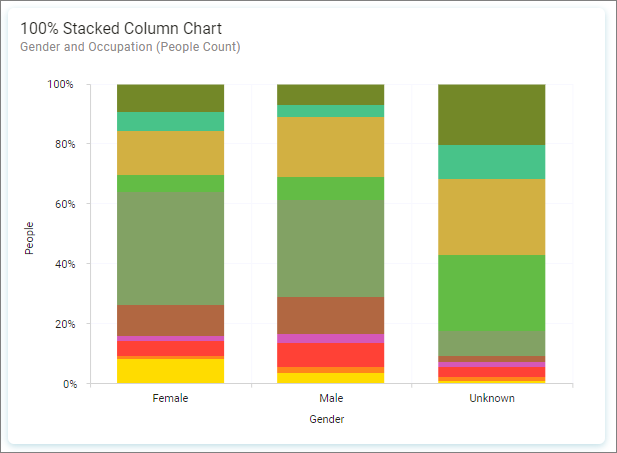

100% stacked column¶
A 100% stacked column chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - Gender and Occupation
- Measure - People

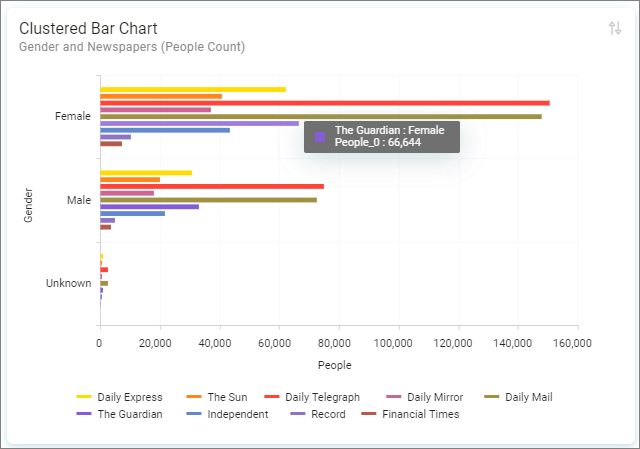

Clustered bar¶
A clustered bar chart displays two dimensions and one measure to compare multiple categories. The horizontal axis displays the measure.
- Dimensions - Gender and Newspapers
- Measure - People

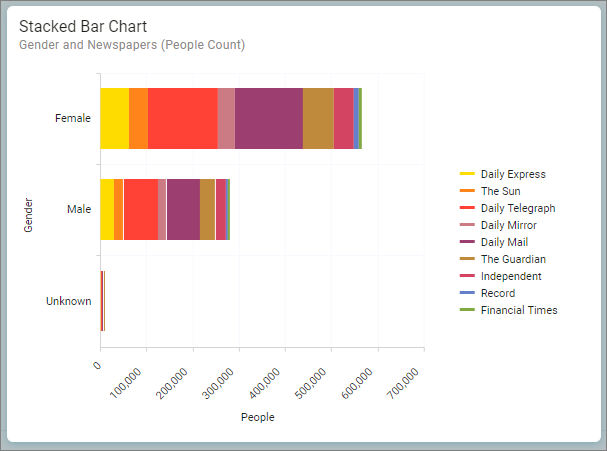

Stacked bar¶
A stacked bar chart displays two dimensions and one measure to compare multiple categories. The horizontal axis displays the measure.
- Dimensions - Gender and Newspapers
- Measure - People

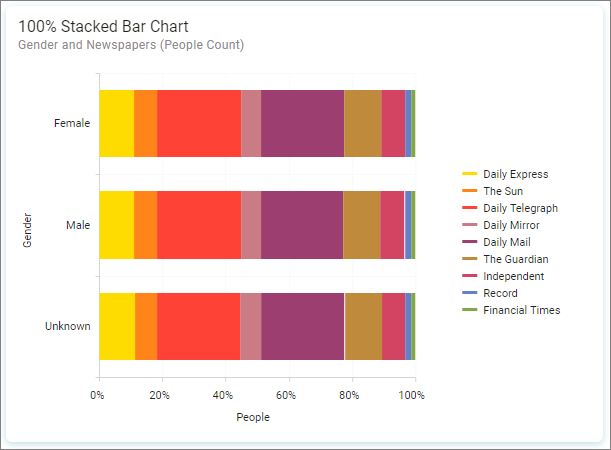

100% stacked bar¶
A 100% stacked bar chart displays two dimensions and one measure to compare multiple categories. The horizontal axis displays the measure.
- Dimensions - Gender and Newspapers
- Measure - People
Clustered line¶
A clustered line chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - DOB and Newspapers
- Measure - People

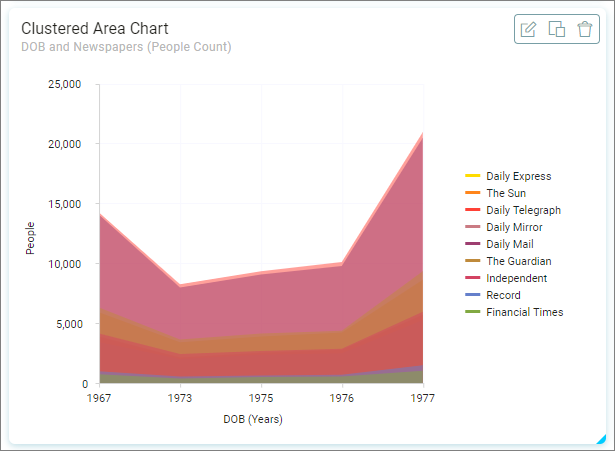

Clustered area¶
A clustered area chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - DOB and Newspapers
- Measure - People

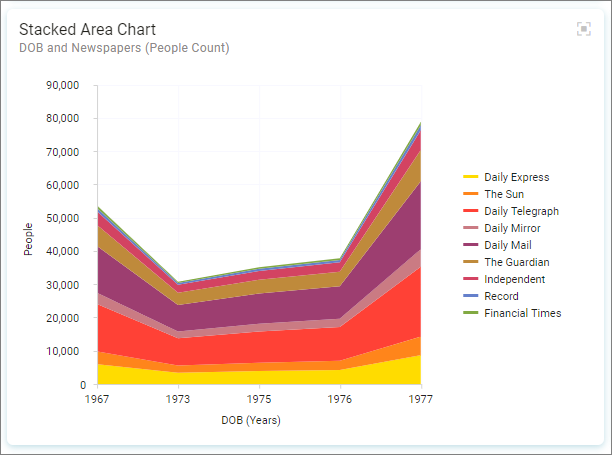

Stacked area¶
A stacked area chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - DOB and Newspapers
- Measure - People

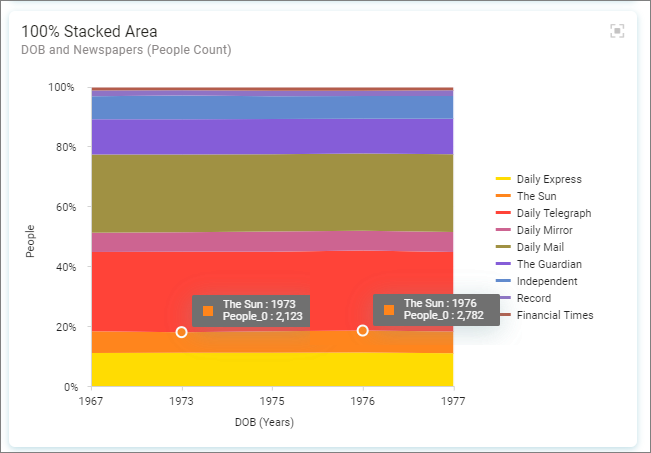

100% stacked area¶
A 100% stacked area chart displays two dimensions and one measure to compare multiple categories. The vertical axis displays the measure.
- Dimensions - DOB and Newspapers
- Measure - People

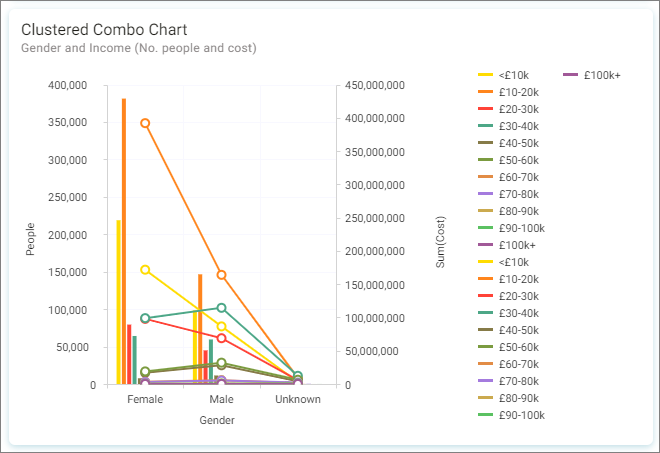

Clustered combo¶
A clustered combo chart displays two dimensions and two measures to compare multiple categories. The left vertical axis displays the first measure, the right vertical axis displays the second measure value range which is represented by a line for each dimension two band.
- Dimensions - Gender and Income
- Measures - People and Cost of Bookings

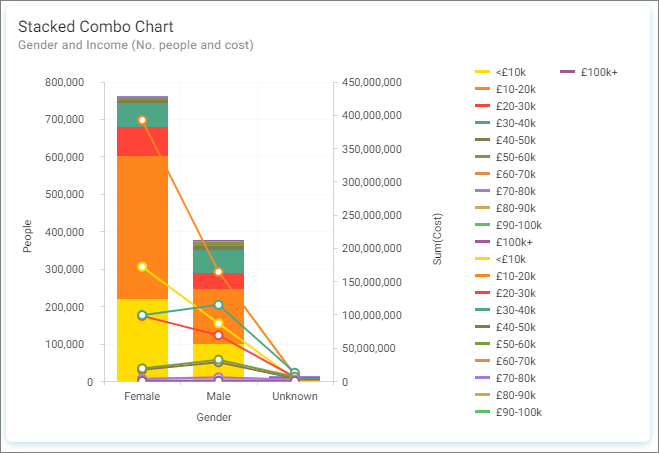

Stacked combo¶
A stacked combo chart displays two dimensions and two measures to compare multiple categories. The left vertical axis displays the first measure, the right vertical axis displays the second measure value range which is represented by a line for each dimension two band.
- Dimensions - Gender and Income
- Measures - People and Cost of Bookings

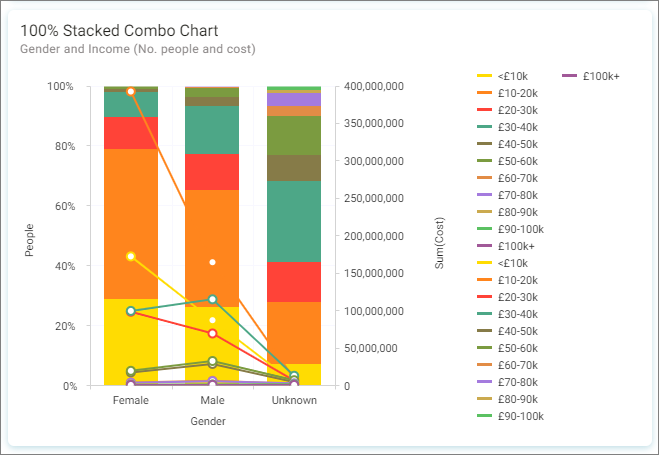

100% stacked combo¶
A 100% stacked combo chart displays two dimensions and two measures to compare multiple categories. The left vertical axis displays the first measure, the right vertical axis displays the second measure value range which is represented by a line for each dimension two band.
- Dimensions - Gender and Income
- Measures - People and Cost of Bookings
